Home > HSS Drill Bits >

Hss Twist Drill Bits Din 341

Product Categories
ZEC INDUSTRY CO.,LTD
Contact Now

Hss Twist Drill Bits Din 341

Place of Origin : China

Brand Name : WXM

MOQ : 100pcs

Packaging Details : paper bag packing or plastic tube packing or absorbing clip packing

Delivery Time : 30days

Payment Terms : T/T 50%at first,50%before the goods delivered

Supply Ability : 10000000pcs

Drill Type : twist drill

Contact Now

Manufacturing process: rolled, milled
Point angle: 118
Flute Type:N
Material:HSS or HSS-Co
Finish:bright, black oxide or TiN
Diameter:5-50mm

 Hss Twist Drill Bits Din 341 10HO7543
Hss Twist Drill Bits Din 341 10HO7542
Hss Twist Drill Bits Din 341 10HO7541
Hss Twist Drill Bits Din 341

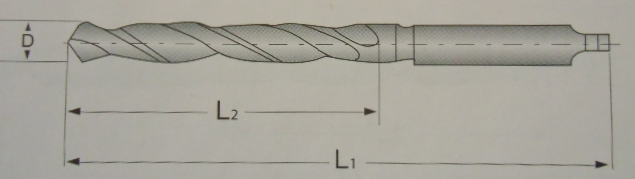

D L1 L2 MT D L1 L2 MT D L1 L2 MT
5 74 155 1 l7.25 165 263 2 29.25 230 351 3
5.2 74 155 1 17.5 165 263 2 29.5 230 351 3
5.5 80 161 1 17.75 165 263 2 29.75 230 351 3
5.8 80 161 1 18 165 263 2 30 230 351 3
6 80 161 1 l8.25 171 269 2 30.25 239 360 3
6.2 86 167 1 18.5 171 269 2 30.5 239 360 3
6.5 86 167 1 18.75 171 269 2 30.75 239 360 3
6.8 93 174 1 19 171 269 2 31 239 360 3
7 93 174 1 19.25 l77 275 2 31.25 239 360 3
7.2 93 174 1 19.5 l77 275 2 31.5 239 360 3
7.5 93 174 1 19.75 l77 275 2 31.75 248 369 3
7.8 100 181 1 20 l77 275 2 32 248 397 3
8 100 181 1 20.25 184 282 2 32.5 248 397 4
8.2 100 181 1 20.5 184 282 2 33 248 397 4
8.5 100 181 1 20.75 184 282 2 33.5 248 397 4
8.8 107 188 1 21 184 282 2 34 257 406 4
9 107 188 1 21.25 191 289 2 34.5 257 406 4
9.2 107 188 1 21.5 191 289 2 35 257 406 4
9.5 107 188 1 21.75 191 289 2 35.5 257 406 4
9.8 116 197 1 22 191 289 2 36 267 416 4
10 116 197 1 22.25 191 289 2 36.5 267 416 4
10.2 116 197 1 22.5 198 296 2 37 267 416 4
10.5 116 197 1 22.75 198 296 2 37.5 267 416 4
10.8 125 206 1 23 198 296 2 38 277 426 4
11 125 206 1 23.25 198 319 3 38.5 277 426 4
11.2 125 206 1 23.5 198 319 3 39 277 426 4
11.5 125 206 1 23.75 206 327 3 39.5 277 426 4
11.8 125 206 1 24 206 327 3 40 277 426 4
12 134 215 1 24.25 206 327 3 40.5 287 436 4
12.2 134 215 1 24.5 206 327 3 41 287 436 4
12.5 134 215 1 24.75 206 327 3 41.5 287 436 4
12.8 134 215 1 25 206 327 3 42 287 436 4
13 134 215 1 25.25 214 335 3 42.5 287 436 4
13.2 134 215 1 25.5 214 335 3 43 298 447 4
13.5 142 223 1 25.75 214 335 3 43.5 298 447 4
13.8 142 223 1 26 214 335 3 44 298 447 4
14 142 223 1 26.25 214 335 3 44.5 298 447 4
14.3 147 245 2 26.5 214 335 3 45 298 447 4
14.5 147 245 2 26.75 222 343 3 45.5 310 459 4
14.8 147 245 2 27 222 343 3 46 310 459 4
15 147 245 2 27.25 222 343 3 46.5 310 459 4
15.3 153 251 2 27.5 222 343 3 47 310 459 4
15.5 153 251 2 27.75 222 343 3 47.5 310 459 4
15.8 153 251 2 28 222 343 3 48 321 470 4
16 153 251 2 28.25 230 351 3 48.5 321 470 4
16.3 159 257 2 28.5 230 351 3 49 321 470 4
16.5
Quality Hss Twist Drill Bits Din 341 wholesale

Hss Twist Drill Bits Din 341 Images
